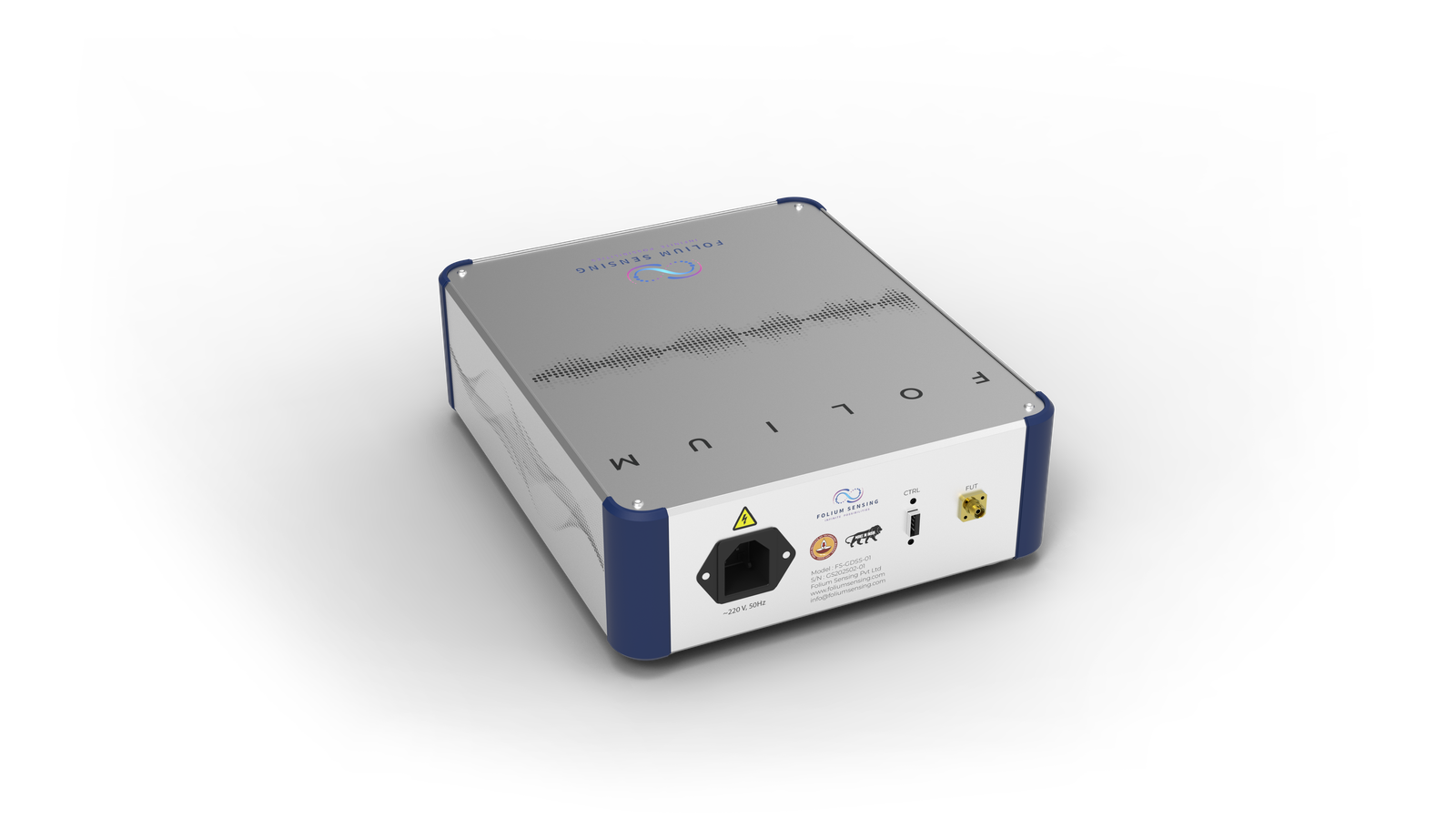

Distributed Strain Sensing (DSS)
High-Resolution Structural Deformation Monitoring
What is DSS?
Distributed Strain Sensing uses Brillouin scattering to measure deformation and strain along long lengths of optical fiber. It provides detailed strain profiles essential for structural health monitoring across bridges, dams, buildings, tunnels, and geotechnical sites.
How DSS Works
When laser light interacts with the fiber under strain, the frequency of Brillouin-scattered light shifts. The interrogation unit analyzes this shift to calculate strain and temperature changes with high accuracy.
Key Features
Spatial resolution 50 cm – 1 m
Measures strain with high accuracy
Long-distance monitoring up to 10–40 km
Detects micro-deformation, cracks, bending, settlement
Reliable in harsh environments
Works with both embedded and surface-mounted fibers
Applications
Bridges & Flyovers
Load response, structural fatigue, crack detection.
Dams & Reservoirs
Deformation under pressure, leakage pathways.
Buildings & Foundations
Settlement tracking, structural movement.
Tunnels & Underground
Lining deformation, shear zones, roof displacement.
Geotechnical & Mining
Slope stability, subsidence, landslide detection.
Benefits
High-resolution, continuous strain measurement
Detects early signs of structural failure
Minimal maintenance
Fully passive fiber—safe for all environments
Supports long-term structural monitoring
Technical Specifications
| Technology | Brillouin Scattering |
| Range | 10–40 km |
| Spatial Resolution | 0.5–1 m |
| Strain Resolution | ±20–50 microstrain |
| Fiber Type | Armored, loose tube, embedded |
Request a Demo
Request a strain sensing case study or a live system walkthrough.
